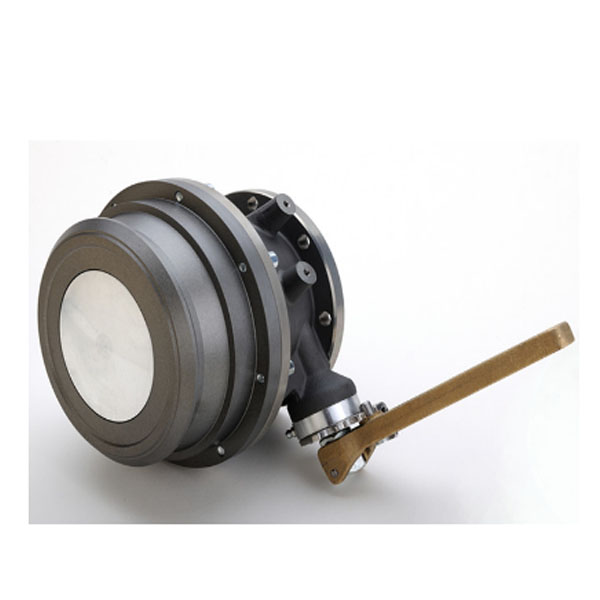

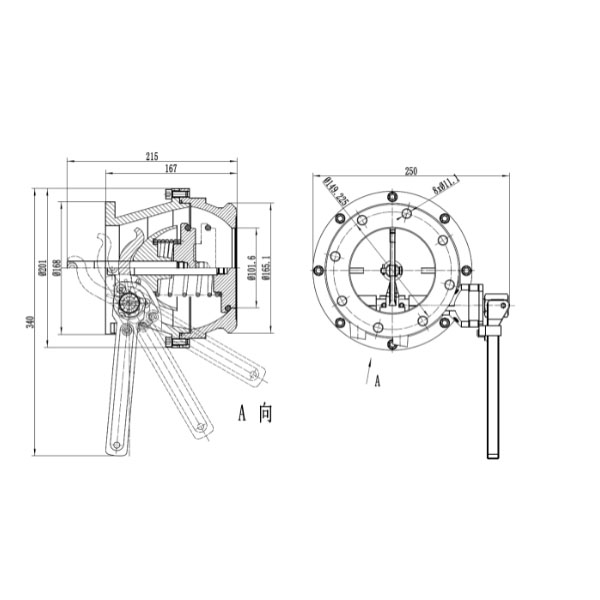

HYF-O API SERIES LOADING/UNLOADING VALVE
product presentation:
HYF-O is installed at the side of tank truck’s bottom for loading and unloading, HYF-02 without handle is normally used for loading only.HYF-01 with a handle can be used for both loading & unloading.Two-position in handle can effectively adjust the flow. With the advantage of light weight and high flow, HYF-O meet EN13083 standard in both designing and testing, and also compatible with API adaptors. The outer nose ends is hard anodised aluminum alloy which can improve the wear resistance efficiently.
Standard:
Meet EN13083 European Standard
Material:
Body, cover: cast aluminum alloy
Poppet: stainless steel/ aluminum alloy
Latch plate for shaft: stainless steel
Handle: H62 brass
Seals: Viton and Nitrile
Package:
NW：20kg/4 pcs
GW：22kg/4 pcs
74*41*22cm3/case of 4PCS
Feature:
u Body, cover and main valve:Aluminum alloy
u compatible with API adaptors, meet API RP1004 and TTMA standard.
u Two-position in the aluminum handle is convenient for adjusting the flow.
u Viton seals for high octane fuels and additives.
u Hydrodynamic internal design minimize the pressure drop in high flow rates.
u The stainless shaft, spring and valve rod ensure the durability.
Spare Parts:
Seal ring for main valve: Fluorous outer Dia.∅104x∅7
Seals for operating shaft: Fluorous outer Dia.∅16.2x∅2.6
Order Specification:
HYF-O1： 4’’ standard, without handle,5kg
HYF-02： 4’’ standard, with handle,5kg
