product presentation:

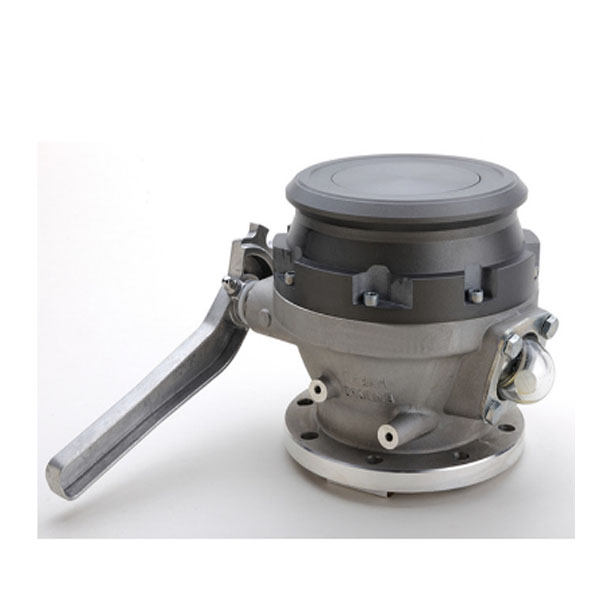

HYF-U is installed at the side of tank truck’s bottom for loading and unloading.HYF-U-02 without handle is normally used for loading only.HYF-U-01 with a handle can be used for both loading & unloading. Two-position in handle can effectively adjust the flow. With the advantage of light weight and high flow, HYF-W meet EN13083 standard in both designing and testing, and also compatible with API adaptors. The outer nose ends is hard anodised aluminum alloy which can improve the wear resistance efficiently.
tandard:
Meet EN13083 European Standard
Material:
Body, cover: cast aluminum alloy
Poppet: stainless steel/ aluminum alloy
Latch plate for shaft: stainless steel
Rolling wheel: H62 brass
Handle: Aluminum alloy
Seals: Viton and Nitrile
Package:
NW: 36kg/6 pcs
GW: 38kg/6 pcs
74*41*22cm3/case of 6 PCS
Feature:
u Aluminum alloy body. Anodizing cover and main valve.
u compatible with API adaptors, meet API RP1004 and TTMA standard.
u Two-position in the aluminum handle is convenient for adjusting the flow.
u Viton seals for high octane fuels and additives.
u Hydrodynamic internal design minimize the pressure drop in high flow rates.
u The stainless shaft, spring and valve rod ensure the durability.
u Sight glass for observing the flow.
Spare Parts:
Seal ring for main valve: Fluorous outer Dia.∅104x∅7
Seals for operating shaft: outer Dia.∅17.5x∅2.6
